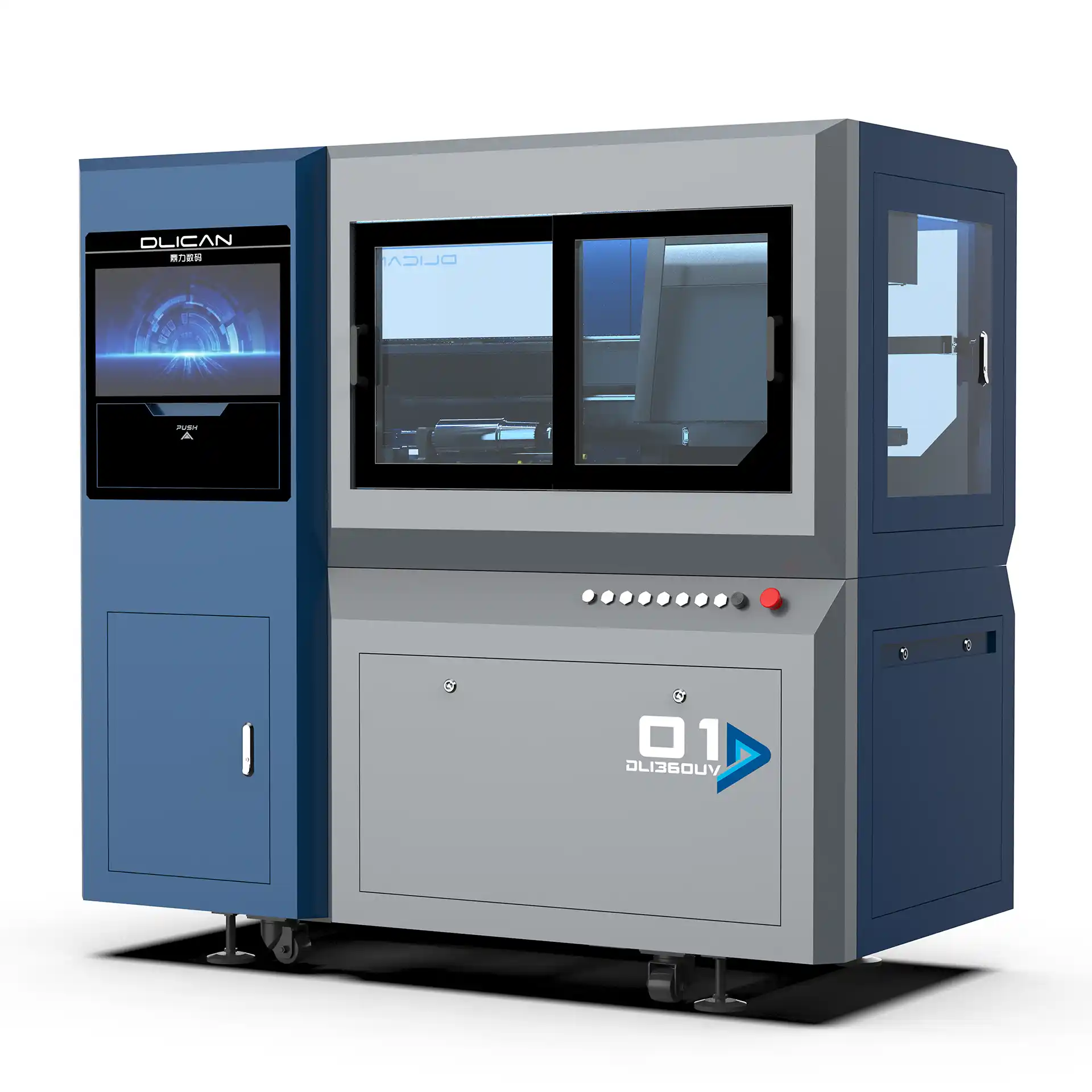

DL360 UV01 : Decorate your cylindrical objects in high definition
This rotating digital printer lets you print all types of cylindrical products.
Technical data
| Product type | Cylindrical (360 degree print) |
| Ink type | UV-based |
| Printing size | Diamètre de la pièce : 50-120 mm / Longueur de la pièce : 10-270 mm |
| Lamp style | UV |
| Print Head Type | Ricoh G5i |
| Number of printhead | 1 - 4 |
| Printing colours | White, CMYK, Varnish |
| Printing precision | Max. 3600 dpi / Standard mode: 600 x 1200 - 4 passes |
| Print speed | 1 min / piece (diameter 50mm) |
| Printing height | Up to 90 mm |
| Print form | Cylinder |
| Operating system | Microsoft Windows 10 |
| Working environment | Temperature : 18°C - 28°C / Humidity : 35 - 65 %. |
| Power requirements | AC220V (+- 10%) ; 50 ≈ 60 Hz ; P = 2 000 W |
| Image file format | PDF, TIFF, JPEG, Ai, EPS, BMP |
| RIP software | 8W ColorGATE RIP, Photo Print, Riprint et prise en charge de divers logiciels d'impression |
| Printer dimensions | 1 640 x 855 x 1 570 mm |
| Weight | 500 kg |
Applications
